IMAP Folders Starting Guide

Thank you for using IMAP Folders.

IMAP Folders lets you conveniently access and manage IMAP mail accounts from your iPhone. Features include:

Disclaimer: this software is provided "as-is", without any expressed or implied warranties of any kind. Int21 cannot be held responsible for any problem arising from the use of this software. Your understanding is appreciated.

If you have any questions, please send email to imf-support@int21.co.jp .

iconIMAP Folders on AppStore

Table of Contents

Quick Starting Guide

Here is the process to start using IMAP Folders.

Account Configuration

Configure the settings for the IMAP server connection.

  1. From the initial Accounts screen, tap the button:

  2. Tap to create a new account:

  3. Select your server from list, or 'Manual Configuration'.

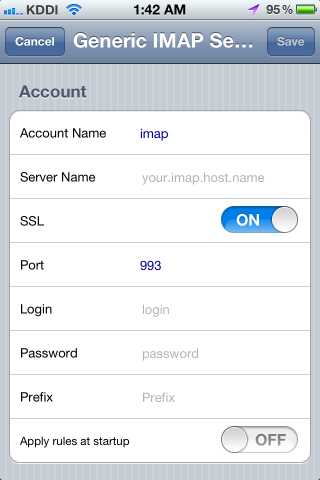

  4. Fill in the information on the Account Settings screen:

  5. Tap the button at the top left, then to return to the account list.
  6. Simply tap on the name of the account you just created to display a list of the folders available on the server:

If the connection to the server could not be established, the application will immediately return to the previous screen. Tap the button again, tap on the name of the account you created and check the settings.

If displayed 'Network Error', something wrong at network. Please move to better place for receive or wait for resolve network trouble.

If you have problems configuring the settings, feel free to visit our support site to read the Frequently Asked Questions and look for help in our online forums.

Folder Management

You can create, rename and delete folders on the IMAP server.

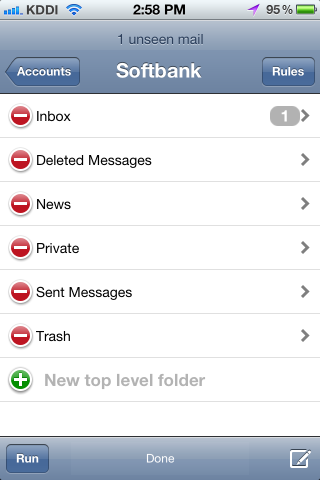

  1. From the Accounts screen, tap the name of the account to access. After connecting to the IMAP server, the list of messages present on the server will be displayed. For folders with unread mail, the number of unread messages will be shown to the right of the folder name:

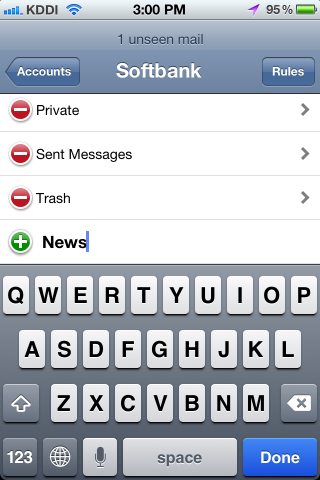

  2. By tapping and entering a folder name, a new folder with that name will be immediately created on the IMAP server:

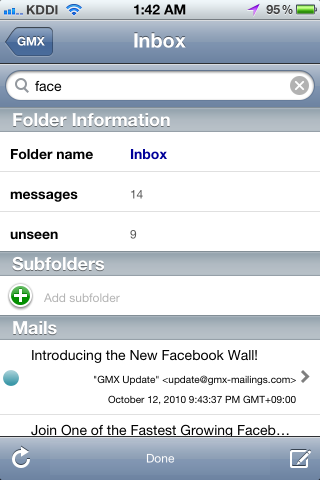

  3. If you tap on the name of a folder, information about that folder will be displayed:

    From there, you can change the name of the folder, search the word contains form subject or mail from, and create subfolders.

    If you rename a folder which is used in message processing rules, you must manually edit those rules to refer to the new folder name.

    You can also read the text of messages in the folder:

    Messages viewed here will be marked as read.

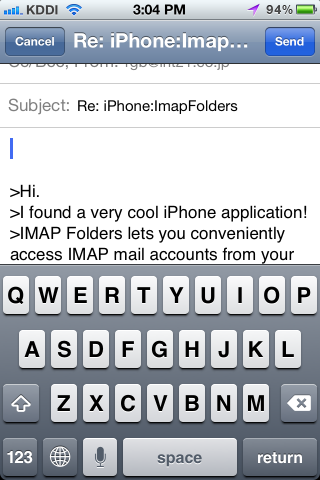

  4. From the message viewing screen, you can initiate a reply message. You can also forward the message to another recipient:

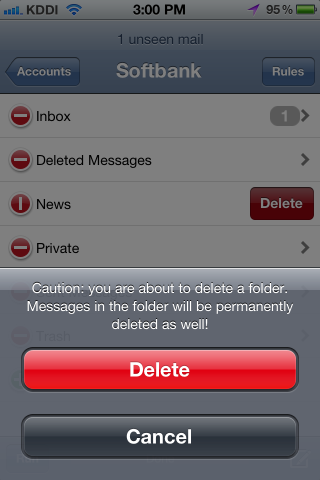

  5. To delete a folder, tap on the (-) icon to the left of the folder name in the list, and then tap the button.

Processing Mail with Rules

Incoming mail can be automatically sorted into the desired folders, or automatically deleted, according to the contents of the message.

  1. From the Accounts screen, tap the name of the account to manage. After connecting to the IMAP server, the list of messages present on the server will be displayed:

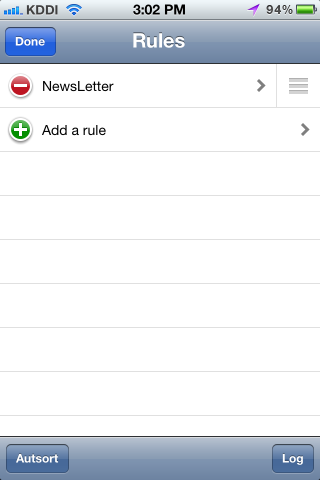

  2. Tap the button to display the Rules screen:

  3. By tapping , the Rule Settings screen is displayed with a new blank rule for you to edit:

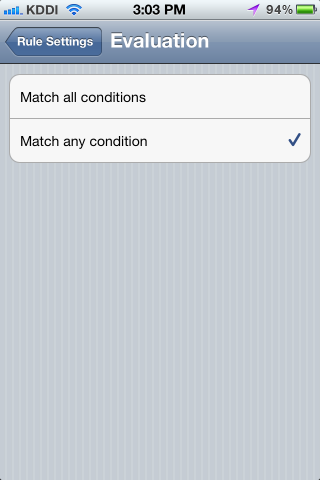

    You can set the name of the folder to process, the conditions to be met to activate this rule (multiple conditions are allowed), and the actions to be taken when those conditions are met.

    Conditions can be based on the value of message headers (such as "Subject", "From", "Date", or any arbitrary header), the message text, or the message's read/unread status.

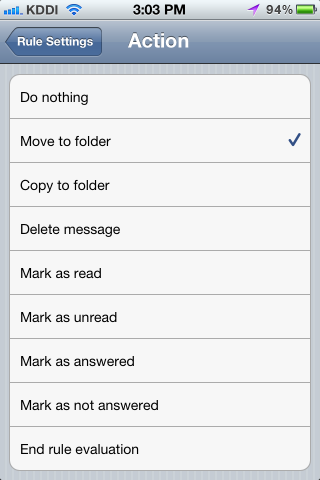

    The processing action can move the message to another folder, copy the message to another folder, or delete the message.

  4. You can create more rules to be applied to the same folder by following the same procedure again.
  5. After returning to the Rules screen, you can tap the button to process the messages in this account according to the rules you have defined.

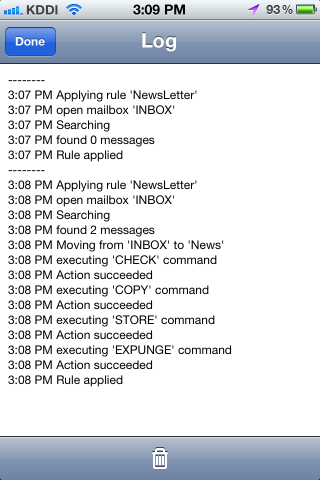

  6. Tapping the button will display a log of the processing decisions that have been applied.

  7. If the Apply rules at startup option is turned on in the Accounts screen, processing rules defined in that account will be applied automatically when IMAP Folders is started:

    For that to happen, you also need to turn on the Apply rules at startup option in the IMAP Folders entry of the iPhone Settings screen:

    You can turn off the automatic execution of processing rules without having to start IMAP Folders by turning off the Apply rules at startup option in the IMAP Folders entry of the iPhone Settings screen.

  8. You can revise a given rule by simply tapping on it in the Rules screen.
  9. To delete a processing rule, tap the (-) icon to the left of the rule in the list, and then tap the button.

Messages will be moved and deleted according to the rules you configure. Please be careful when creating message processing rules.

Explanation of the various screens

Accounts

(initial screen)

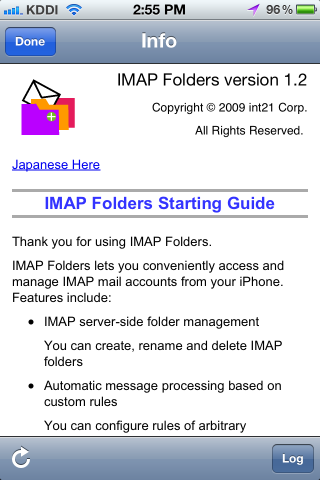

Information

Accounts > (i)

Log

Accounts > Information >

Accounts (edit mode)

Accounts >

Account Settings

Accounts > > (+) or (account name)

When selected from server list.

When 'Manual Settings'.

Account Name A name to distinguish this account.
e.g. gmail
Server Name The host name of the IMAP server.
e.g. imap.gmail.com
SSL
(on/off)
Set to ON to securely encrypt communications with the IMAP server using the SSL protocol. Only set this option when the server supports SSL communication.
Port The port number to connect to the server.
e.g. 143 (when not using SSL)
or 993 (when using SSL)
Login The user name used to login to the IMAP server.
e.g. kate
Password The password used to login to the IMAP server.
Prefix A prefix to prepend to mail folder paths on the IMAP server.
Apply rules at startup
(on/off)
If turned on, message processing rules configured for this account will be automatically applied when mail is received. The Apply rules at startup option in the IMAP Folders entry of the iPhone Settings screen must also be turned on.
Example for Gmail
Server Nameimap.gmail.com
SSLOn
Server port993
User namesteve
Prefix(unset)
Example for AOL
Server Nameimap.aol.com
SSLOff
Server port143
User namesteve
Prefix(unset)
Example for steve@i.softbank.jp
Server Nameimap.softbank.jp
SSLOff
Server port143
User namesteve
Prefix(unset)
Example for au(KDDI) steve@ezweb.ne.jp user name:aaaa
Server Nameimap.softbank.jp
SSLOn
Server port993
User nameaaaa
Prefix(unset)

For the settings required for other e-mail service providers, please check the documentation provided by your e-mail service provider.

Once you are done entering the settings, tap to return to the Accounts screen.

Folder List

Accounts > (account name)

Folder Information

Accounts > (account name) > (folder name)

Rules

Accounts > (account name) >

Rule Settings

Accounts > (account name) > Rules > (+) or (rule name)

Condition

Account > (account name) > > (+) or (rule name) >

Example:

Move newsletters
Conditions [If criteria matches] [From contains] [info@]
[If criteria matches] [Subject contains] [MSDN Flash]
Action Move to folder [Newsletters]
Using multiple rules:
Move messages from Steve that have been replied to
Rule 1 Conditions [If criteria doesn't match] [Answered]
Action End rule evaluation
Rule 2 Conditions [If criteria matches] [From contains] [steve@]
Action Move to folder [Steve]
